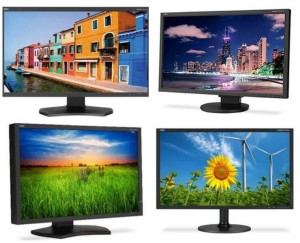

Not so long ago the example Monitor EIZO FORIS FS2434, we met with the present Japanese quality. At this time, we offer you the model of other famous Japanese manufacturer – NEC Display Solution. Although nominally display the monitor news NEC MultiSync EA275UHD assembled in China, but the quality control system at the plant has not been canceled.
What is interesting for a buyer this the monitor news NEC MultiSync? Firstly, it is based on using high-quality IPS-panel with a diagonal of 27 inches and a resolution of 4K Ultra HD (3840 x 2160). Secondly, it is equipped with two sensors useful: the presence of a man near the monitor (Human Sensor) and ambient light (Ambient Light Sensors). The first captures the absence of a man near the monitor to reduce the power consumption and the second automatically adjusts backlight brightness according to the ambient lighting. This is just the tip of the iceberg. Want to know more – read on!
Packaging and delivery: the monitor news NEC MultiSync
The monitor news NEC MultiSync EA275UHD comes in a regular cardboard box, which cannot boast of highly informative and colorful graphic arts industry. Perhaps in this way the company NEC Display Solution is demonstrating its commitment to the environment and reduces the final cost of the product.
Package Includes news includes all the necessary components:
- Power cable;
- Cable DisplayPort;
- Cable USB 3.0;
- Cable ControlSync;
- Stand;
- Paper documentation and user manual.
We focus your attention on the cable ControlSync, which previously we have not met anyone monitor. It implements an interesting technique of the same name. In a set of external interfaces the monitor news NEC MultiSync EA275UHD, there are two 2.5-mm connectors ControlSync IN / OUT, which together with the cable used to transfer settings to another monitor (or the setting of this model from the other). It works very simply: calibrating a monitor (conditionally Master Monitor), activate ControlSync technology and automatically transferred to another setting (conditional Sub Monitor), and then the rest of the chain. Thus, it is possible to connect up to 6 monitors, which significantly reduce the time of adjustment, if necessary so that they all showed the same image quality.
The appearance and features of operation: the monitor news NEC MultiSync

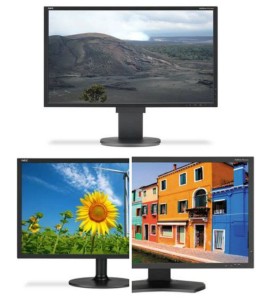

Exterior model the monitor news NEC MultiSync EA275UHD is quite restrained and functional. There are no special design refinements (such as “frameless” profile or the original foot-stand), but outdated or boring it also will not name. Build quality does not raise any problems: Solid plastic used, and any defects in the structure were not found.
Due to the functional leg-stand screen can be adjusted for height, tilt or rotate in different planes. Also, it is the holder for the cable, which will neatly organize workspace. By the way, a novelty two speakers built a total capacity of 2 watts. The high-quality sound, they cannot boast (no bass, and prevail over the medium high), but will be able to replace desktop speakers entry-level workers to further save valuable space. Removing the stand can be done wall mounting of the monitor news NEC MultiSync EA275UHD thanks to the support bracket VESA (100 x 100 mm).
A set of external interfaces includes video ports DVI-D, DisplayPort and HDMI, two 3.5mm audio jacks, two ports USB 3.0, one USB 2.0 interface and two 2.5-mm connectors ControlSync IN / OUT. Also placed on the body is the lock Kensington.
The front frame of the monitor would like to highlight two previously mentioned sensor (presence of a person near the monitor (Human Sensor) and ambient light (Ambient Light Sensors)), the LED mode and eight touch buttons for menu navigation. On clicking, they react quickly, so work with them quite comfortable.
On Screen Display: the monitor news NEC MultiSync
The monitor news NEC MultiSync Display Solution the Company has equipped its own product is very flexible and well-designed menus. In addition, there are several language localizations (including Russian), which will quickly navigate the available settings.
The wealth of opportunities presented amaze. Here there are not only a function of adjusting the traditional parameters (brightness, contrast, etc.) and the activation of predefined color profiles, and even built-in sensors and setting the brightness mode indicator, volume control, the configuration of the sleep timer, and more. If you wish, you can even see savings of CO2 and calculate the monetary savings from automatic brightness control (specify the cost of electricity). By the way, the work themselves near human presence sensors monitor the ambient light is quite correct and has not caused any complaints. In short, its fullness and richness of the menu left a good impression.
Testing: the monitor news NEC MultiSync
Hardware platform during a test the monitor news NEC MultiSync EA275UHD played mini-computer ZOTAC ZBOX nano ID65 PLUS. The full description of the research methodology of your monitor you will find in the corresponding material.
The results of factory calibration generally pleased. Minimum brightness amounted to 251.9 cd / m2 and a maximum – 402.8 cd / m2 at the stated typical value of 350 cd / m2. Static contrast, though not reached the nominal of 1000: 1, but only in the profiles of “1” and “2”, the figure slightly alarming. But setting color accuracy and gamut Adobe RGB color space, and sRGB pleasantly pleased, though this monitor nominal and does not belong to the professional series. I also draw your attention to the profile of «DICOM SIM», which corresponds to the medical standards and allows you to view x-ray images. This once again underlines the high versatility of the monitor news NEC MultiSync EA275UHD.
Despite the fact that the color gamut in sRGB space novelty varies from 89.7% to 98.6% (depending on the color profile), CIE-diagram view of their virtually identical: supersaturation in green, green, yellow and orange colors and a small loss in red and pink shades.
Conclusion: the monitor news NEC MultiSync EA275UHD
In general, there are very precisely set up correctly display colors. Yes, the profile «DICOM SIM» two measures went beyond the maximum value of 4, but the rest of the setup deserves only praise, considering the recommended figures: 1.5 (average deviation of dE * 94) and 4 (maximum deviation dE * 94).
Source: device-boom
